Chauvin Arnoux CA6545 5kV Megohmmeter

DOT EARTH · BUSINESS SUPPLY

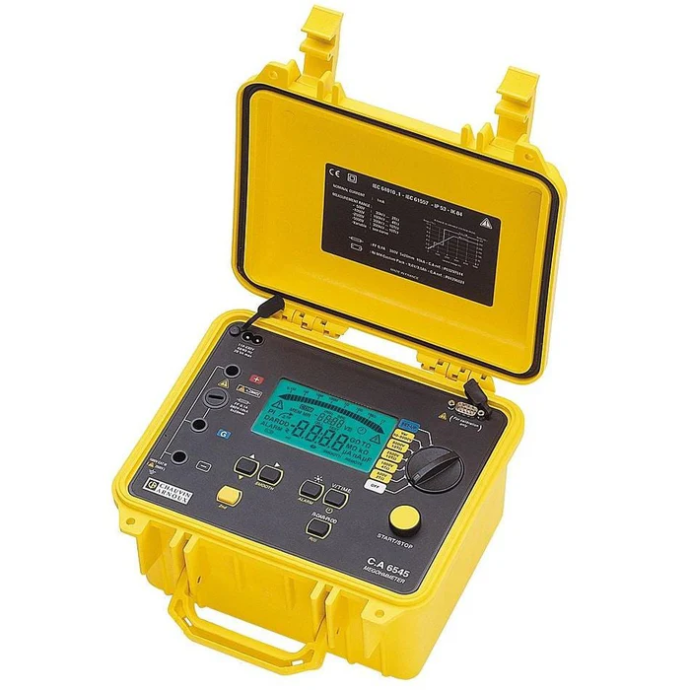

Chauvin Arnoux CA6545 5kV Megohmmeter

https://www.dotearth.ae/web/image/product.template/2096/image_1920?unique=637fd7c
(0 review)

9,355.00 AED 9355.0 AED 9,355.00 AED 9,999.00 AED

Not Available For Sale

  • Brand
  • Warranty

This combination does not exist.

Contact Us
Brand: Chauvin Arnoux
Warranty: 1 Year

Share

​Key Features:

  • High Voltage Insulation Testing (Up to 5kV): Tests insulation resistance up to 5000V, ideal for high-voltage equipment and systems.
  • Wide Resistance Measurement Range: Measures insulation resistance across a broad range.
  • Multiple Test Voltages with Programmable Steps: Offers selectable test voltages and programmable steps, providing flexibility for various applications and in-depth analysis.
  • Diagnostic Test Modes (DAR, PI, DD): Includes Dielectric Absorption Ratio (DAR), Polarization Index (PI), and Discharge Diagnostic (DD) tests for comprehensive insulation analysis.
  • Ramp Test Mode: Allows for a gradual increase in test voltage for detailed insulation behavior analysis.
  • Automatic Discharge: Safely discharges the tested object after the test.
  • Large, Backlit Digital Display with Bargraph: Provides clear readings and a visual representation of the test progress.
  • Data Storage and Transfer: Stores test results and enables data transfer to a computer for analysis and reporting.
  • Rugged and Portable Design: Designed for field use with a durable construction and convenient portability.
  • CAT IV 600V Safety Rating: Ensures safe operation in demanding electrical environments.


​Key Technical Specification:

Insulation Test Voltage Options:

  • Selectable test voltages: 500 V, 1000 V, 2500 V, 5000 V DC

Measurement Range:

  • Insulation resistance up to 10 TΩ (Terraohms)

Short-Circuit Current:

  • Up to 3 mA for quick charging and discharging

Test Voltage Display:

  • Real-time display of actual test voltage

Measurement Features:

  • DAR (Dielectric Absorption Ratio)

  • PI (Polarization Index)

  • DD (Dielectric Discharge Ratio)

  • Timed testing with programmable durations

  • Voltage ramp function for breakdown detection

Display Type:

  • Large backlit dual digital display with analog bargraph

Safety Rating:

  • CAT IV 600V – Ideal for industrial and high-energy environments

Power Supply:

  • Rechargeable NiMH battery pack or external power adapter

Data Logging & Interface:

  • Internal memory for data storage

  • RS-232/USB interface for PC communication and reporting

Automatic Discharge:

  • Integrated automatic discharge of test voltage for operator safety

Environmental Ratings:

  • IP53 protection

  • Operating temperature: -10°C to +55°C

Mechanical Features:

  • Rugged design with carrying handle and protective case

  • Built for field use in harsh environments

Dimensions & Weight:

  • Approx. 270 x 250 x 180 mm

  • Weight: ~4.5 kg

Standards Compliance:

  • Complies with IEC 61010-1, EN 61557-2, -4, -5 safety standards

  • CE Certified
