Key Features:

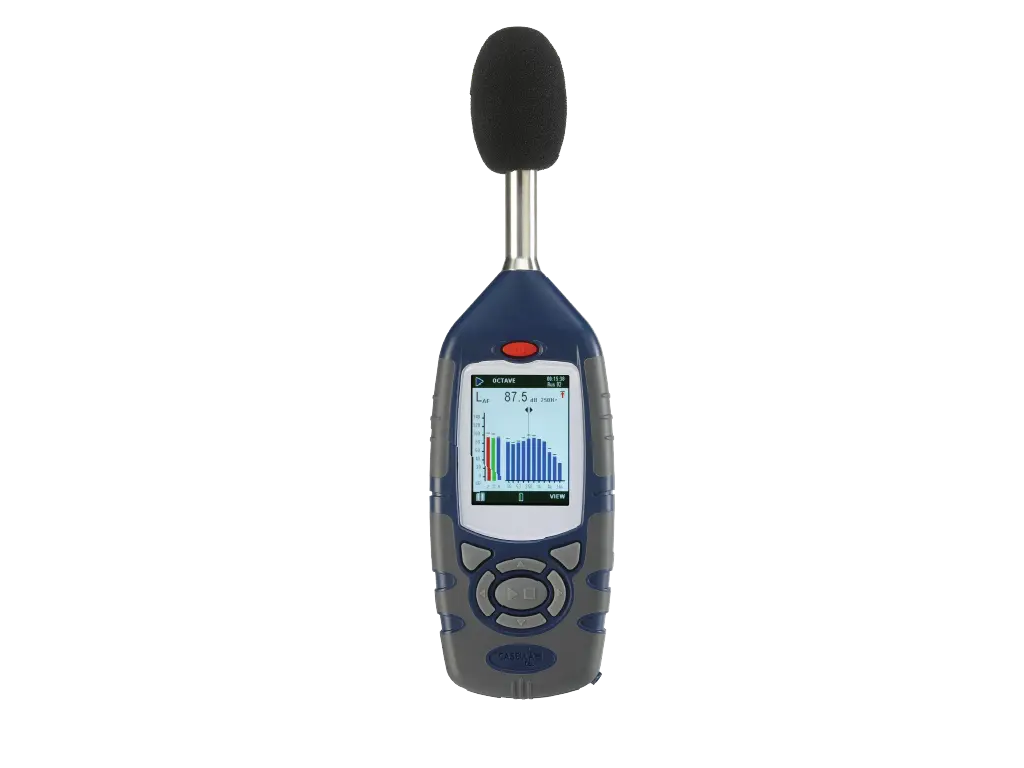

Using a colour display and a simpler user interface, the
CEL-620A Sound Level Meter is specifically designed to ensure taking noise
measurements is quick and easy, whilst effective. As-well as simultaneously
measuring all key workplace noise parameters, advanced features such as time
history storage and voice notes are included with this model.
The CEL-620A Enhanced Digital Sound Level Meters measures a range of parameters
for workplace noise surveys including average (LEQ and LAVG) and LPeak levels,
ensuring measurements are compliant with international noise legislation, such
as EU, OSHA and ACGIH. Use the CEL-620 Series to carry out occupational noise
assessments or machinery noise tests as well as to assist with the selection of
hearing protection using the octave band method.
Choose either a Class 1 or Class 2 Microphone for precision, or a CEL-620B to
include Octave Band analysis, used for the selection of hearing protection. The
CEL-620A has a simple operation and easy setup, measurement screens are
intuitively colour coded according to the mode of operation, i.e. green if a
measurement is being taken and red when a run has ended. Data is graphically
displayed in real-time to give a comprehensive picture of the noise
environment. The unit has a single large measurement range to 140dB (peak).
instrument also has six selectable setups – four that are pre-defined to
legislative standards and two that can be customised so that you get the data
you need. Regardless of the setup, the CEL-620A measures and stores ALL
parameters, even if not selected and these can be viewed in the software. All
runs are date and time stamped and the CEL-620A stores up to 999 runs. The 999
runs can be up to 24 hours each, even with the 1s time history stored.
With the CEL-120 Series Calibrator, the calibrator is automatically detected to
allow quick calibration, and calibration date and time is automatically
stored.
Features & Benefits
- Time
history storage (Selectable from 1s to 30min)
- Larger
memory (999 runs)
- Voice
notes (Up to 33 hours of audio storage)
- GPS
location
- Single
large measurement range
- Compact,
Rugged design
- Pre-defined
and user configurations available
- Compliant
with IEC 61672 Class 1 or 2 and ANSI S1.4
- High
resolution colour display
- Instrument
menu in 9 languages
- Automatic
calibration function
- Long
battery life (Typically 12 hours from three AA batteries)
