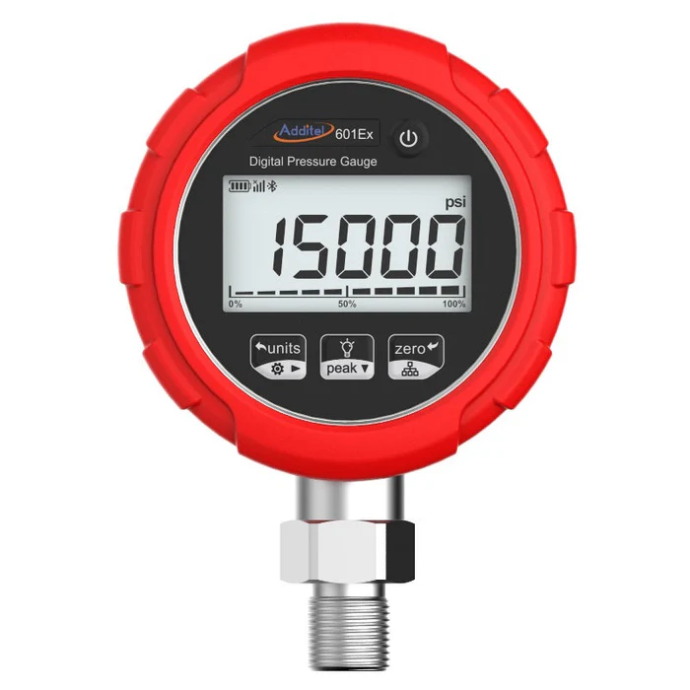

Additel ADT601Ex Digital Pressure Gauge, Accuracy 0.5% FS, 15,000 PSI (0-1000 bar)

https://www.dotearth.ae/web/image/product.template/2128/image_1920?unique=055d31f
(0 review)

1,570.00 AED 1570.0 AED 1,570.00 AED 1,599.00 AED

Not Available For Sale

  • Brand
  • Warranty

This combination does not exist.

Contact Us
Brand: Additel
Warranty: 1 Year

Share

Key Features:

Intrinsically Safe Design: Certified for hazardous environments with ATEX, IECEx, and CSA approvals.

High Accuracy: Delivers reliable pressure measurements with 0.5% Full Scale (FS) accuracy.

Wide Pressure Range: Available in various pressure ranges up to 40,000 psi (2,800 bar) to suit diverse applications.

Rugged & Durable: Built with a robust stainless steel body and IP67 rating for water and dust resistance.

Easy-to-Read Display: Features a large, backlit LCD screen for clear data viewing in all lighting conditions.

Data Logging Capability: Internal memory allows for recording and storing pressure data for later review.

User-Friendly Interface: Simple menu navigation with intuitive button layout.

Multiple Engineering Units: Supports a wide variety of measurement units for convenience.

Wireless Communication (Optional): Compatible with Additel’s wireless communication modules for remote monitoring.

Battery Powered: Long-lasting battery life ensures extended use in field applications.

Compact & Lightweight: Ideal for portable use in industrial environments.


​Key Technical Specifications:

Model: Additel ADT601Ex

Accuracy: ±0.5% Full Scale (FS)

Pressure Range:

  • -15 psi (-1 bar) to 15,000psi (1,000 bar)

Display:

  • Wide viewing angle FSTN segment code LCD

  • White backlight, backlight time: ON, 15 seconds, 30 seconds, 45 seconds, 60 seconds, the default is 15 seconds

  • 4 digits display, character height 14.5 mm(0.57") , main display + unit display + horizontal pressure trend

Operational buttons

  • 4 membrane buttons with locking feature

Ingress Protection: IP67 (dustproof and waterproof)

Operating Temperature:

  •  -4°F to 122°F (-20°C to 50°C)

Power:

  • Battery life: 1. Super stable mode[1]: 4000 hours (3 reading/s), 1000 hours (10 reading/s) 2. Low power mode[2]: 5000 hours (2 reading/s), 9000 hours (1 reading/s, default), 18000 hours (1 reading/10s)

Data Logging:

  • Built-in memory for storing pressure data

  • USB communication for data download

Update Rate: Up to 10 readings per second

Materials:

  • Wetted parts: Stainless steel (316)

  • Casing: Durable industrial-grade housing

Weight:  1.2 Lb (0.55 kg)

Dimensions:  Ø3.62" x 1.69" depth x 5.59" height (Ø92 mm x 43 mm depth x 142 mm height)

Communication (Optional):

  • Bluetooth (BLE5.3)
