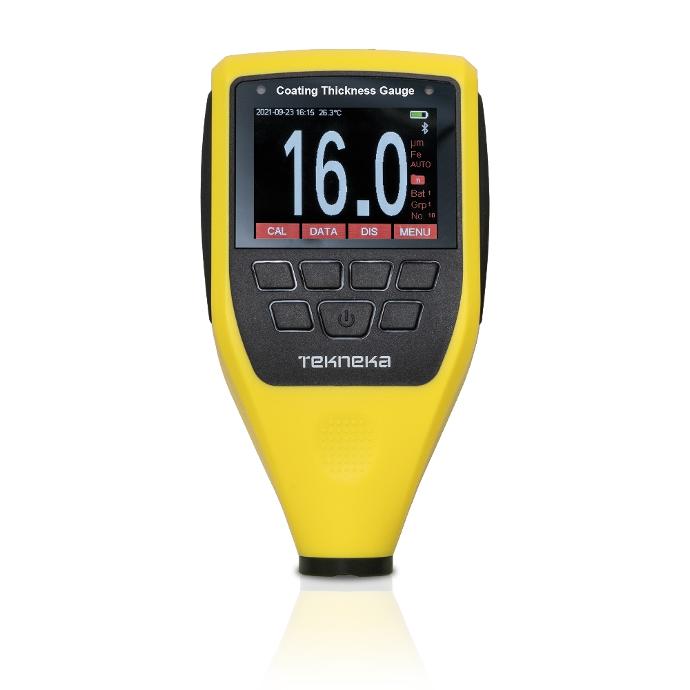

Tekneka 760 Coating Thickness Gauge

• Wide Measuring Range: Measures coating thickness from 0 to 5000μm (0 to 196.8 mils) with high accuracy.
• High Accuracy: ±(2% + 1μm) for precise measurements.
• Dual Measurement Modes: Supports both magnetic induction (ferrous) and eddy current (non-ferrous) methods.
• LCD Display: 2.4-inch high contrast color display with adaptive screen rotation.
• Bluetooth Connectivity: Real-time data transfer and viewing on mobile devices.
• Data Storage: Stores up to 1,300 readings in multiple batches/groups.
• Calibration Options: Zero-point and multi-point calibration (up to 4 points) for enhanced accuracy.
• Versatile Applications: Ideal for automotive paint inspection, coated material testing, and manufacturing quality control.
• User-Friendly Interface: Easy recall and deletion of specific readings.
• Alarm Feature: Set high/low limits for each general group.
• PC Interface: USB connectivity for real-time measurement and data export in .txt format.
• Battery Efficient: Auto power off and low battery indicator.

Applications:

• Automotive Paint Inspection
• Coated Material Testing
• Manufacturing Quality Control
• Surface Technology
• Pipelines Anti-Corrosion Coating
• Chemical Equipment
• Mechanical Equipment Surface Anti-Corrosion

• Measuring Range: 0 to 5000μm (0 to 196.8 mils)
• Accuracy: ±(2% + 1μm) / ±(2% + 0.39 mils)
• Minimum Curvature Radius (Convex): 5mm
• Minimum Curvature Radius (Concave): 25mm
• Calibration: Zero-point and multi-point calibration (up to 4 points)
• Display Resolution: 0.1μm (0 to 99.9μm) / 1μm (≥100μm)
• Display: 2.4-inch high contrast color LCD with adaptive screen rotation
• Measurement Methods: Magnetic induction (ferrous) and eddy current (non-ferrous)
• Data Storage: Up to 1,300 readings in multiple batches/groups
• Connectivity: Bluetooth for real-time data transfer and USB for PC interface
• Power Supply: 2 x AA batteries with auto power off and low battery indicator
• Response Time: Fast measurement with high repeatability
• Alarm Feature: Set high/low limits for each general group
• Statistics Display: Number of readings, mean, min, max, standard deviation, coefficient of variation, numbers below/above limit
