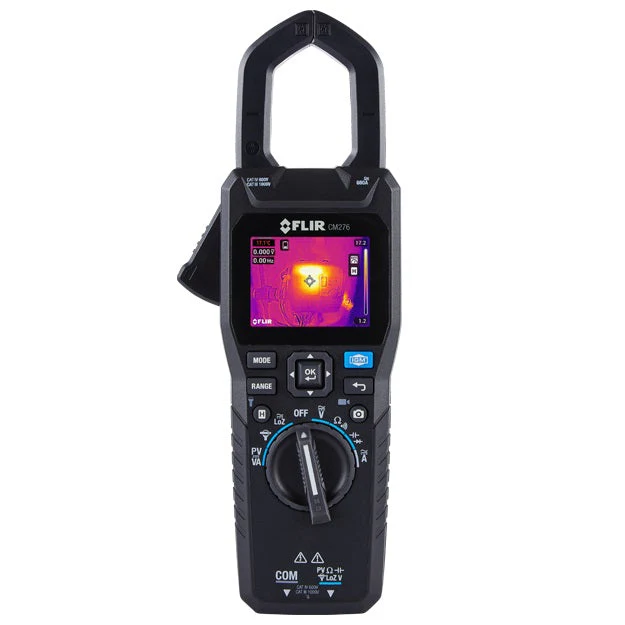

FLIR CM276 Clamp Meter and Thermal Imaging Camera with METERLiNK

​Key Technical Specifications:

1. Current Measurement

   • AC/DC Current Range: 0 to 600A.
   • High accuracy for both alternating and direct currents, ideal for industrial applications.

2. Voltage Measurement

   • AC/DC Voltage Range: 0 to 1000V.
   • Reliable voltage testing for high-capacity circuits and complex electrical systems.

3. Thermal Imaging Camera

   • Built-in 160 × 120 resolution thermal camera for identifying hot spots and thermal anomalies.
   • Temperature Range: -25°C to 150°C (-13°F to 302°F).
   • Detects overheating components, loose connections, and insulation issues efficiently.

4. True RMS Measurement

   • Accurate readings for non-linear loads and distorted waveforms, ensuring precise diagnostics.

5. METERLiNK Connectivity

   • Bluetooth-enabled METERLiNK technology for wireless data transfer.
   • Stream measurement data to FLIR thermal cameras and mobile devices for comprehensive reporting.

6. Inrush Current Measurement

   • Captures motor and equipment startup currents with precision, enabling reliable machinery diagnostics.

7. Resistance Measurement

   • Resistance Range: 0 to 60kΩ.
   • Includes continuity testing with an audible buzzer for circuit diagnostics.

8. Capacitance Measurement

   • Capacitance Range: 10µF to 1000µF.
   • Perfect for testing capacitors in industrial and commercial settings.

9. Frequency Measurement

   • Frequency Range: 10Hz to 10kHz, enabling analysis of variable frequency drives and other equipment.

10. Display Features

    • Large, easy-to-read backlit LCD screen with dual-display capability.
    • Shows both electrical measurements and thermal imaging data simultaneously.

11. Safety Ratings

    • Rated CAT IV 600V and CAT III 1000V for high-voltage safety in industrial environments.
    • Overvoltage protection enhances user safety.

12. Jaw Opening Size

    • 37mm: Accommodates standard and larger conductors for versatile use.

13. Thermal Camera Features

    • MSX® Image Enhancement Technology: Combines visible light and thermal images for detailed diagnostics.
    • Adjustable emissivity settings for precise temperature readings on various surfaces.

14. Data Logging and Memory

    • Stores thermal images and electrical measurements internally.
    • USB interface for easy data export to PCs or mobile devices.

15. Build and Durability

    • Rugged design with an IP54 rating, providing dust and water resistance.
    • Designed to withstand tough industrial and outdoor conditions.

16. Power Supply

    • Rechargeable lithium-ion battery for extended operation.
    • USB charging for convenient recharging on the go.

17. Operating Conditions

    • Operating Temperature: -10°C to 50°C (14°F to 122°F).
    • Humidity: Up to 85% RH, ensuring reliable performance in various environments.
