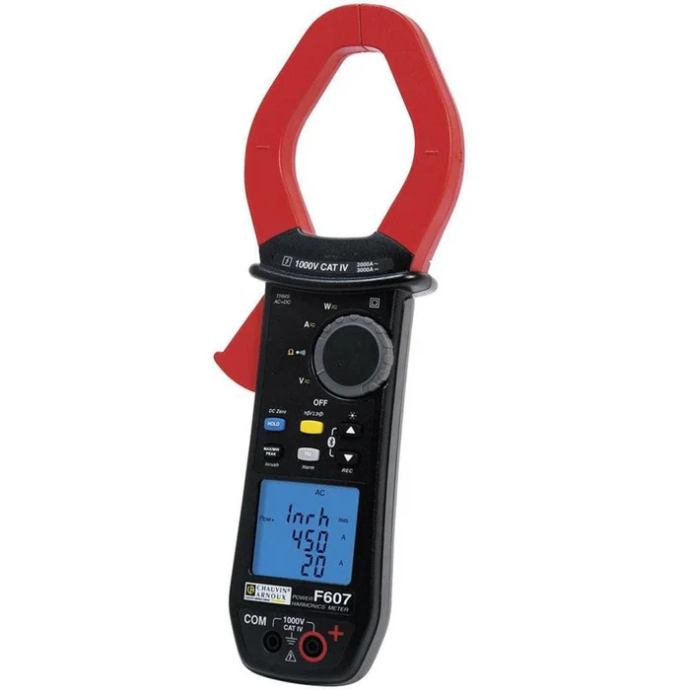

  3. Chauvin Arnoux F607 : True RMS AC/DC digital clamp meter
قائمة أسعار عامة
Chauvin Arnoux F607 : True RMS AC/DC digital clamp meter

Chauvin Arnoux F607 : True RMS AC/DC digital clamp meter

https://www.dotearth.ae/web/image/product.template/2000/image_1920?unique=31026cf
(مراجعة 0 )

3,465.00 AED 3465.0 AED 3,465.00 AED 3,599.00 AED

Not Available For Sale

  • العلامة التجارية
  • Warranty

هذه التركيبة غير موجودة.

تواصل معنا
العلامة التجارية: Chauvin Arnoux
Warranty: 1 Year

مشاركة

​Key Features:

  • True RMS Measurement: Ensures accurate readings for both AC and DC currents, even in non-sinusoidal waveforms, providing reliable results in various applications.
  • AC/DC Current Measurement: Measures both AC and DC currents, offering flexibility and versatility in different electrical environments.
  • Large, Backlit LCD Display: Provides clear and easy-to-read measurements, even in low-light conditions.
  • Data Hold Function: Freezes readings on the display for convenient recording and analysis.
  • Low Battery Indication: Warns users of low battery levels, preventing unexpected shutdowns.
  • Rugged and Durable Design: Built to withstand tough jobsite conditions with a durable housing and protective rubber overmold.
  • Ergonomic Design: Comfortable to hold and use for extended periods, reducing user fatigue.
  • Auto/Manual Range Selection: Offers flexibility and convenience in different measurement scenarios.
  • Safety Rated: Meets relevant safety standards for user protection.


​Key Technical Specifications:

Current Measurement Range

  • AC Current: 0.15A to 2000A RMS.
  • DC Current: 0.15A to 3000A.
  • Ideal for measuring high currents in industrial and commercial applications.

Voltage Measurement Range

  • AC Voltage: 0.1V to 1000V RMS.
  • DC Voltage: 0.1V to 1000V.
  • Handles high-voltage systems with exceptional precision.

True RMS Technology

  • Provides accurate measurements for both sinusoidal and non-sinusoidal waveforms.

Resistance Measurement

  • Range: 0.1Ω to 99.99kΩ.
  • Perfect for testing circuit continuity and diagnosing electrical faults.

Frequency Measurement

  • Range: 5Hz to 20kHz.
  • Allows for precise frequency analysis in various electrical systems.

Jaw Opening Capacity

  • Maximum Diameter: 60mm.
  • Designed to accommodate large cables and busbars.

Power Measurement

  • Measures active, reactive, and apparent power, as well as power factor, for comprehensive electrical diagnostics.

Safety Ratings

  • CAT IV 1000V: Ensures safe operation in the most demanding environments, including industrial and utility-grade systems.

Harmonic Analysis

  • Measures up to the 25th harmonic for advanced power quality monitoring.

Inrush Current Measurement

  • Captures surge currents during equipment startup for accurate diagnostics.

Display

  • Large, backlit LCD with bar graph for clear visibility and detailed data representation.

Data Logging and Storage

  • Memory: Stores up to 300 measurements for later review.
  • Ideal for long-term monitoring and reporting.

Auto Power Off

  • Extends battery life by shutting down during periods of inactivity.
