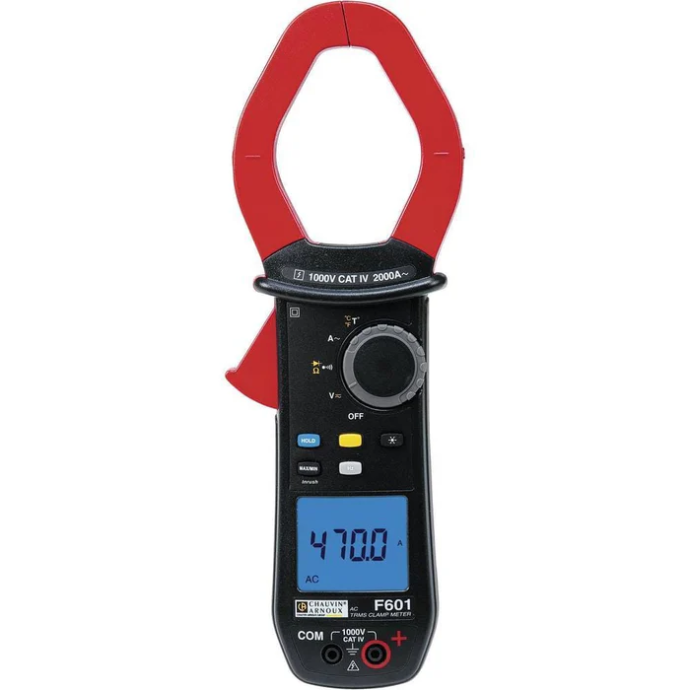

Chauvin Arnoux F601 True RMS AC Clampmeter

Chauvin Arnoux F601 True RMS AC Clampmeter

https://www.dotearth.ae/web/image/product.template/2006/image_1920?unique=ccdf67f
(مراجعة 0 )

1,929.00 AED 1929.0 AED 1,929.00 AED 1,999.00 AED

Not Available For Sale

  • العلامة التجارية
  • Warranty

هذه التركيبة غير موجودة.

تواصل معنا
العلامة التجارية: Chauvin Arnoux
Warranty: 1 Year

مشاركة

​Key Features:

  • True RMS Measurement:
    • Accurately measures complex waveforms, including distorted signals, for precise readings.
  • Wide Measurement Range:
    • Handles a broad spectrum of current values, from low to high, minimizing the need for multiple meters.
  • CAT IV 1000V Safety Rating:
    • Ensures user safety when working on electrical installations.
  • Backlit Display:
    • Easy to read in dimly lit environments.
  • Data Hold Function:
    • Freezes readings for easy recording and analysis.
  • Auto Ranging:
    • Automatically selects the appropriate measurement range for optimal accuracy.
  • Non-Contact Voltage Detection:
    • Quickly identifies the presence of voltage without direct contact.
  • Compact and Durable Design:
    • Built to withstand tough jobsite conditions.
  • Ergonomic Design:
    • Comfortable to use for extended periods.


​Key Technical Specifications:

  1. Current Measurement Range

    • AC Current: 0.5A to 2000A True RMS.
    • Provides precise current measurement for industrial and commercial applications with high current demands.

  2. Voltage Measurement Range

    • AC Voltage: 0.1V to 1000V True RMS.
    • DC Voltage: 0.1V to 1000V.
    • Wide voltage measurement capability for diverse applications.

  3. True RMS Technology

    • Ensures accurate readings for both sinusoidal and non-sinusoidal waveforms.
    • Perfect for modern electrical systems with variable loads.

  4. Resistance Measurement

    • Range: 0.1Ω to 99.99kΩ.
    • Ideal for testing circuit continuity and identifying faulty components.

  5. Frequency Measurement

    • Range: 10Hz to 20kHz.
    • Accurate frequency measurements for in-depth analysis of power systems.

  6. Inrush Current Measurement

    • Captures transient inrush currents during equipment startup for better system analysis.

  7. Power Measurement

    • Measures active, reactive, and apparent power along with power factor for comprehensive energy analysis.

  8. Harmonic Analysis

    • Supports harmonic analysis up to the 25th order to evaluate power quality and troubleshoot harmonics.

  9. Safety Ratings

    • CAT IV 1000V : Provides high-level safety certification for operation in high-energy environments.

  10. Jaw Opening Capacity

    • Maximum Conductor Size: 60mm diameter.
    • Accommodates large cables and busbars for versatile use in industrial setups.

  11. Display

    • Large, backlit LCD with real-time numerical readings and bar graph functionality for enhanced visibility in any lighting condition.

  12. Data Logging

    • Stores multiple readings for easy review and detailed reporting.

  13. Durable and Ergonomic Design

    • Rugged, robust construction ensures reliable performance in challenging industrial conditions.
    • Compact and ergonomic design for easy handling and portability.
