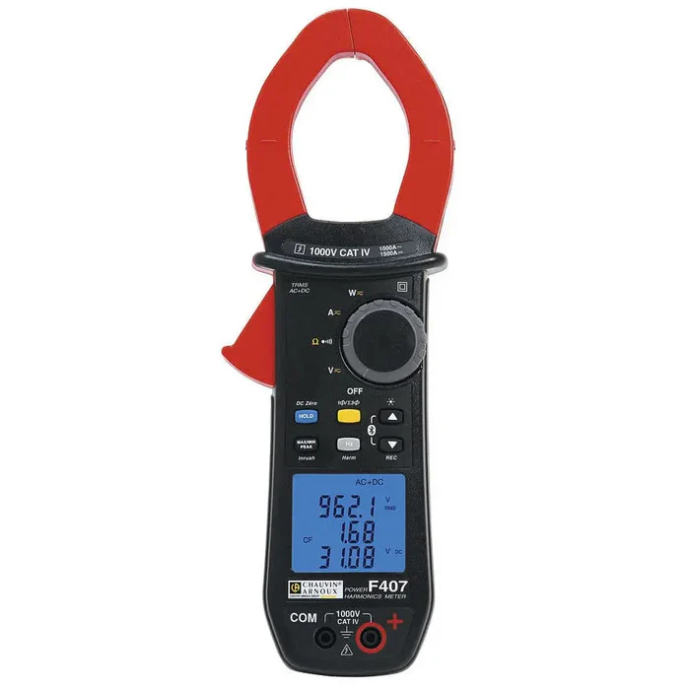

Chauvin Arnoux F407 Power/Harmonics Clamp Meter

https://www.dotearth.ae/web/image/product.template/1991/image_1920?unique=96f217c
(مراجعة 0 )

2,419.00 AED 2419.0 AED 2,419.00 AED 2,459.00 AED

Not Available For Sale

  • العلامة التجارية
  • Warranty

هذه التركيبة غير موجودة.

تواصل معنا
العلامة التجارية: Chauvin Arnoux
Warranty: 1 Year

مشاركة

​Key Features:

  • Power Measurements: Measures key parameters like voltage, current, power (active, reactive, apparent), power factor, and energy consumption.
  • Harmonics Analysis: Detects and analyzes harmonic distortion, identifying potential sources of power quality issues.
  • True RMS Measurement: Ensures accurate readings even in non-sinusoidal waveforms, providing reliable data in complex electrical systems.
  • Large, Backlit Display: Provides clear and easy-to-read measurements, even in low-light conditions.
  • Data Logging Capability: Records measurements over time for trend analysis and troubleshooting.
  • Trend Recording: Captures and displays measurement trends to identify potential problems proactively.
  • Communication Interface: Enables data transfer to a PC for further analysis and report generation.
  • Rugged and Durable Design: Built to withstand tough jobsite conditions with a durable housing and protective rubber overmold.
  • Ergonomic Design: Comfortable to hold and use for extended periods, reducing user fatigue.
  • Safety Rated: Meets relevant safety standards for user protection.


​Key Technical Specifications:

Current Measurement

  • AC Current Range: 0.15A to 1000A.
  • DC Current Range: 0.15A to 1500A.
  • High-capacity current measurement for industrial systems and power installations.

Voltage Measurement

  • AC Voltage Range: 0.15V to 1000V.
  • DC Voltage Range: 0.15V to 1000V.
  • Wide voltage measurement capability for comprehensive diagnostics.

True RMS Technology

  • Accurate readings for non-linear, distorted waveforms in modern electrical systems.

Power Measurement

  • Supports Active Power, Reactive Power, Apparent Power, and Power Factor.
  • Real-time power diagnostics for efficient energy analysis.

Harmonics Analysis

  • Measures up to the 25th harmonic for detailed power quality and waveform distortion evaluation.

Inrush Current Measurement

  • Captures transient currents during startup of motors and other equipment.

Jaw Opening Size

  • 48mm (1.89 inches): Accommodates large cables and busbars for diverse applications.

Safety Ratings

  • CAT IV 1000V: Maximum safety in high-voltage and industrial environments.

Display Features

  • High-resolution backlit LCD display with dual display capability for multiple measurements at a glance.

Data Logging

  • Stores up to 300 measurement values, ensuring efficient tracking and reporting of results.

Durability and Build

  • Robust construction for long-term reliability in industrial and field conditions.
  • Ergonomically designed for comfort and ease of use.
