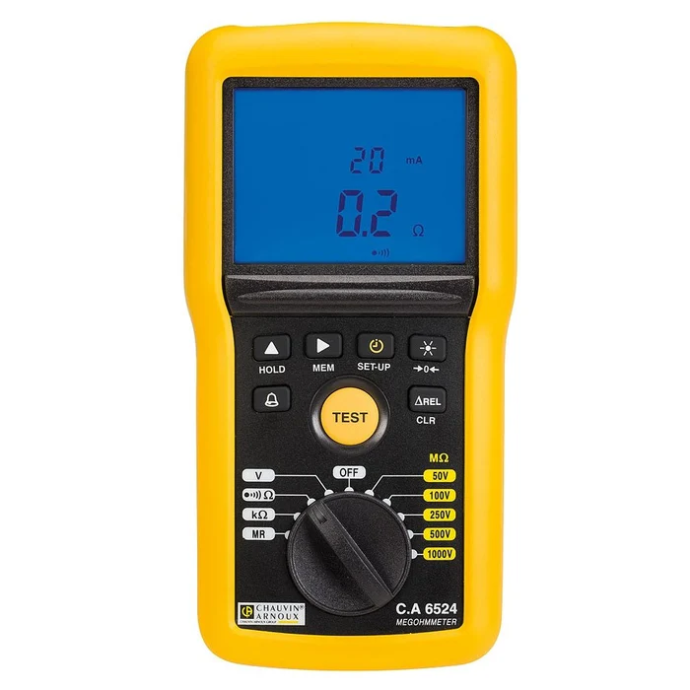

Chauvin Arnoux CA6524 1kV Insulation And Continuity Tester

https://www.dotearth.ae/web/image/product.template/2095/image_1920?unique=d750855
(مراجعة 0 )

2,315.00 AED 2315.0 AED 2,315.00 AED 2,400.00 AED

Not Available For Sale

  • العلامة التجارية
  • Warranty

هذه التركيبة غير موجودة.

تواصل معنا
العلامة التجارية: Chauvin Arnoux
Warranty: 1 Year

مشاركة

​Key Features:

  • 1kV Insulation Testing: Tests insulation resistance up to 1kV, suitable for a wide range of electrical applications.
  • Wide Insulation Resistance Measurement Range: Measures insulation resistance across a broad spectrum.
  • Continuity Testing: Performs continuity testing for checking circuit integrity.
  • Audible Continuity Beep: Provides an audible tone for quick and easy continuity checks.
  • 200mA Continuity Test Current: Delivers a 200mA test current for reliable continuity measurements.
  • Automatic Discharge: Safely discharges capacitive loads after insulation testing.
  • Large, Backlit Digital Display: Offers a clear and easy-to-read display, even in low-light conditions.
  • Data Hold Function: Freezes the displayed reading for convenient recording.
  • Compact and Rugged Design: Designed for portability and durability in field environments.
  • CAT IV 600V Safety Rating: Ensures safe operation in demanding electrical environments.


​Technical Specifications:

  • Insulation Resistance Measurement:

    • Test Voltages: 50V, 100V, 250V, 500V, 1000V
    • Resistance Range: Up to 200GΩ
    • Automatic discharge function for enhanced safety

  • Continuity Testing:

    • Measurement Range: Up to 20Ω
    • Test Current: 200mA (per IEC 61557 standard)
    • Audible buzzer for rapid continuity verification

  • Voltage Measurement:

    • AC/DC Voltage Range: Up to 700V
    • Live Circuit Detection: Prevents accidental insulation testing on live circuits

  • Advanced Features:

    • Polarization Index (PI) & Dielectric Absorption Ratio (DAR): Automatic calculations for insulation quality assessment
    • Large Backlit LCD Display: Clear visibility in low-light environments
    • Data Hold & Storage: Saves test results for analysis
    • Auto Power Off: Extends battery life
    • CAT IV 600V Safety Rating: High-level protection in electrical installations

  • Power Supply:

    • Operates on ​ 6 x LR6(AA) batteries
