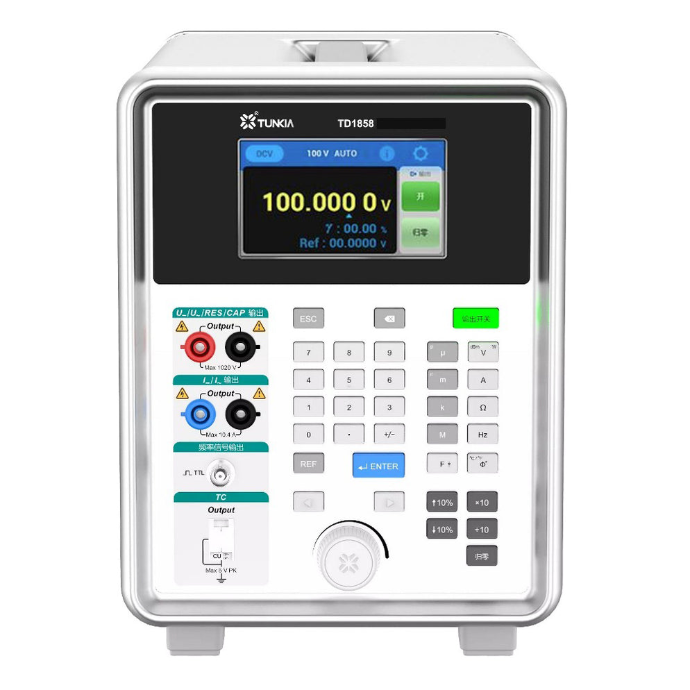

TUNKIA TD1858-TC Portable Multifunction Calibrator: Technical Specifications
Overview
The TUNKIA TD1858-TC is a compact and versatile portable calibrator designed for on-site calibration and troubleshooting of a wide range of process instruments. This powerful tool combines accuracy and ease of use, making it ideal for field technicians and maintenance professionals.
Key Features:
- Multifunctionality: Calibrates a broad spectrum of instruments including Temperature (RTD, thermocouple, resistance), mA, V, frequency, and pulse.
- Portability: Lightweight and compact design for easy transportation and on-site use.
- High Accuracy: Ensures reliable and precise calibration results with industry-leading accuracy specifications.
- User-Friendly Interface: Intuitive interface with a large, backlit display for easy navigation and data entry.
- Rugged Construction: Built to withstand harsh environments and demanding field conditions.
- Data Logging & Analysis: Stores calibration data for later analysis and report generation.
- Communication: Supports various communication protocols for seamless data transfer and integration with other systems.
- Optional Accessories: Wide range of accessories available to expand functionality and cater to specific applications.
Technical Specifications:
- DC Voltage Output: + (10 mV ~ 1020 V), - (10 mV ~ 10.4 V)
- DC Current Output: ± (10 μA ~ 10.2 A)
- AC Voltage Output: 10 mV ~ 1020 V
- AC Current Output: 10 μA ~ 10.4 A
- Frequency Range: 10 Hz ~ 20 kHz (Sinusoidal Wave), 1 Hz ~ 2 MHz (Square Wave)
- Resistance Range: 1 Ω ~ 220 MΩ
- Thermocouple Outputs (Optional): Types J, K, T, R, S, B, N, E, L, U, C
- Clamp Meter Calibration (Optional): Equivalent to 1000AT current through input 20A current to the 50T Coil
- Display: 4.3-inch Color Touch Screen
- Weight: 9.5 kg
Applications:
- Process Control & Instrumentation
- Manufacturing
- Oil & Gas
- Power Generation
- HVAC/R
- Research & Development
- Education
Benefits:
- Increased Efficiency: Streamlines calibration processes and reduces downtime.
- Improved Accuracy: Ensures accurate and reliable instrument readings.
- Enhanced Productivity: Enables faster troubleshooting and repairs.
- Reduced Costs: Minimizes maintenance costs and improves overall equipment performance.
- Improved Safety: Ensures safe and reliable operation of critical equipment.
Call to Action:
Contact Dot Earth today to learn more about the TD1858-TC Portable Multifunction Calibrator and request a quote. Tel : 02 665 1126, E-Mail : info@dotearth.ae
