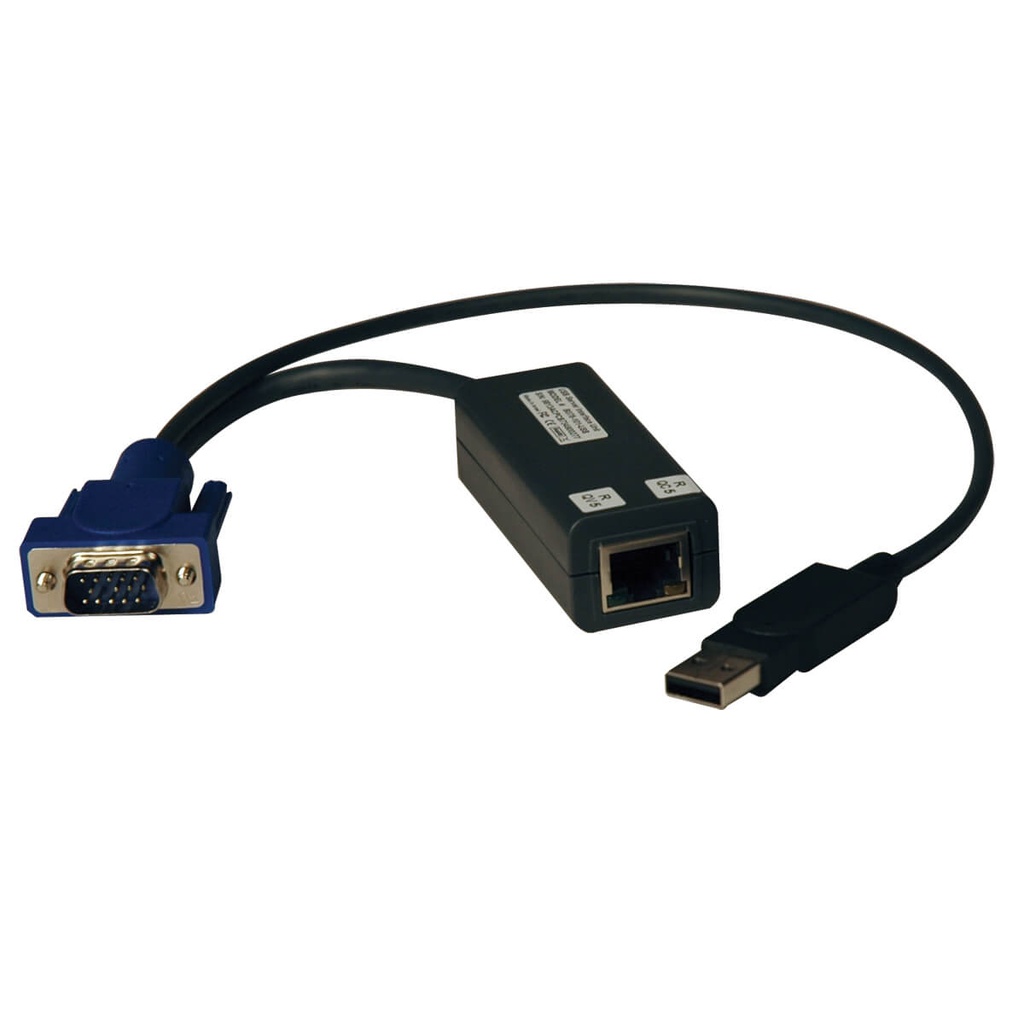

TRIPP LITE NET COMMANDER USB SERVER INTERFACE CABLE B078-101-USB-1

This combination does not exist.

Needed to connect a USB Server to a B070 / B072-Series NetCommander KVM switch via Cat5e cable
Eliminates the need for thicker, heavier KVM cables
Compact, lightweight design
Plug and Play; no software required
No power supply required
Allows a Server/CPU to be located up to 100-ft. (30.5 m) away from the KVM switch
To convert DisplayPort or HDMI computers to VGA, use adapters P134-06N-VGA-V2 or P131-06N
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule Purchases

Server or CPU with a HD15 port and a USB port
A B070 / B072-Series NetCommander Cat5 KVM Switch
Cat5e/6 cable; up to 100ft
To convert DisplayPort or HDMI computers to VGA, use adapters P134-06N-VGA-V2 or P131-06N

Bus Powered	Yes
Product Length (ft.)	1.3

Side A - Connector 1	HD15 (MALE)
Side A - Connector 2	USB A (MALE)
Side B - Connector 1	RJ45 (FEMALE)
Computer Keyboard and Mouse Interface	USB
Computer Monitor Interface	VGA

LED Indicators

GREEN (RECEIVING POWER); ORANGE (SELECTED AS ACTIVE PORT)

Driver Required	No
Recommended Category Cable	N105 - SERIES CAT5E SHIELDED CABLES

Product Certifications	EN 55022; EN 55024
Product Compliance	RoHS; CE (Europe); REACH; FCC (USA)

Product Warranty Period (Worldwide)

3-year limited warranty
