Cat5e cable needed to connect a USB server to a B070 / B072-Series NetCommander KVM switch.

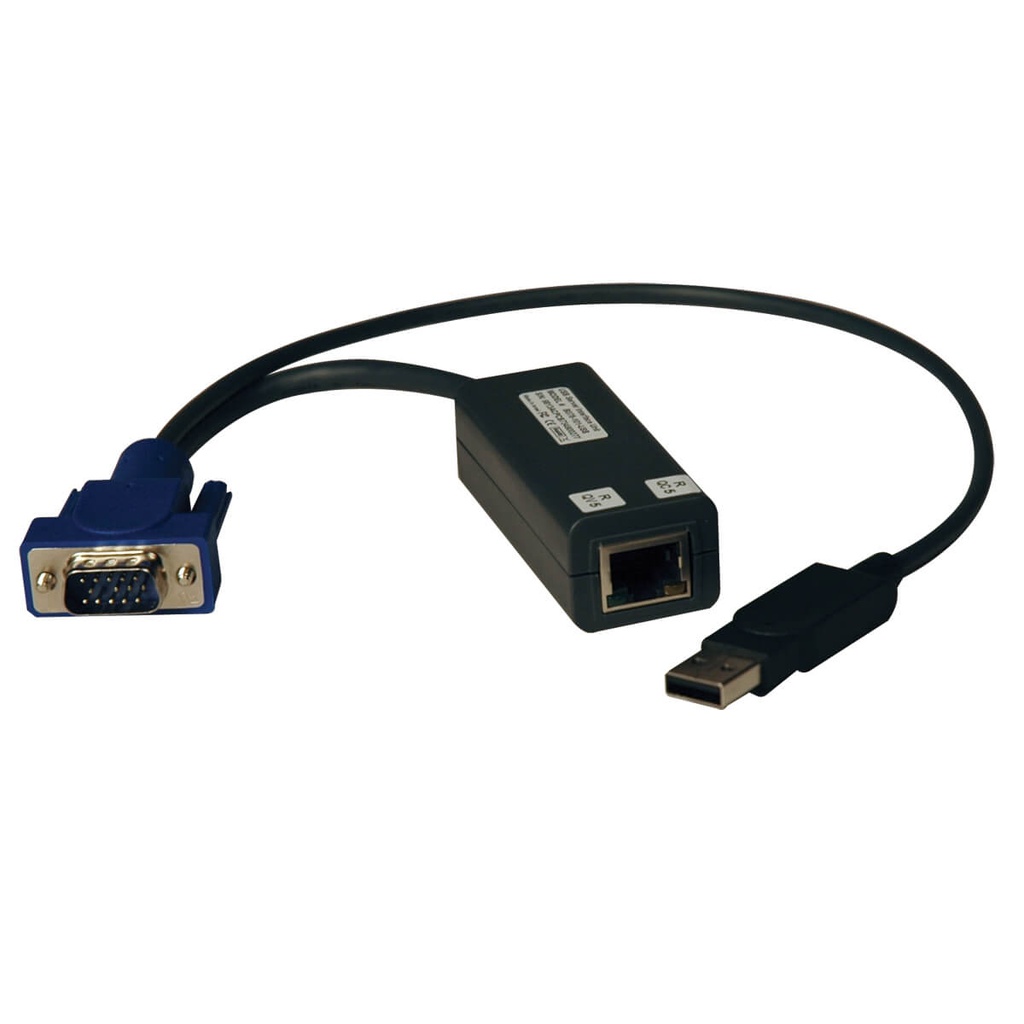

B078-101-USB-1 Server Interface Units, 8-Pack
Lightweight Design
No power supply needed
No software required
Description
The purpose of cables are designed to facilitate the connection between USB-enabled servers or computers and Tripp Lite Net Commander KVM switches. They enable centralized management and control of multiple servers from a single console.
Feature
Description
Seamless Server Integration
Connects USB servers to NetCommander KVM switches via Cat5e cables
Enhanced Flexibility
Extends server connections up to 100 feet from the KVM switch
Simplified Installation
Plug-and-play design, no software required
Compact and Lightweight
Space-saving design for easy deployment
Cost-Effective Solution
Eliminates the need for bulky KVM cables
Specification
Value
Type
Server Interface Unit (SIU)
Compatibility
B070/B072 Series NetCommander KVM Switches
Cable Type
Cat5e (not included)
Maximum Distance
100 feet (30.5 meters)
Power Source
Bus-powered
Package Quantity
8-pack
OVERVIEW
UPC Code
037332182470
Accessory Type
Server Interface Unit
Technology
Cat5/5e; VGA/SVGA
Accessory Class
KVM Switch Accessories
INPUT
Bus Powered
Yes
Product Length (ft.)
1.3
CONNECTIONS
Side A - Connector 1
HD15 (MALE)
Side A - Connector 2
USB A (MALE)
Side B - Connector 1
RJ45 (FEMALE)
Computer Keyboard and Mouse Interface
USB
Computer Monitor Interface
VGA
USER INTERFACE, ALERTS & CONTROLS
LED Indicators
GREEN (RECEIVING POWER); ORANGE (SELECTED AS ACTIVE PORT)
PHYSICAL
Color
Gray
Material of Construction
ABS
Shipping Dimensions (hwd / in.)
4.50 x 6.00 x 10.30
Shipping Weight (lbs.)
2.20
Unit Packaging Type
Box
Unit Weight (lbs.)
0.18
FEATURES & SPECIFICATIONS
Driver Required
No
Recommended Category Cable
N105 - SERIES CAT5E SHIELDED CABLES
STANDARDS & COMPLIANCE
Product Certifications
EN 55022; EN 55024
Product Compliance
RoHS; CE (Europe); REACH; FCC (USA)
WARRANTY & SUPPORT
Product Warranty Period (Worldwide)
3-year limited warranty
