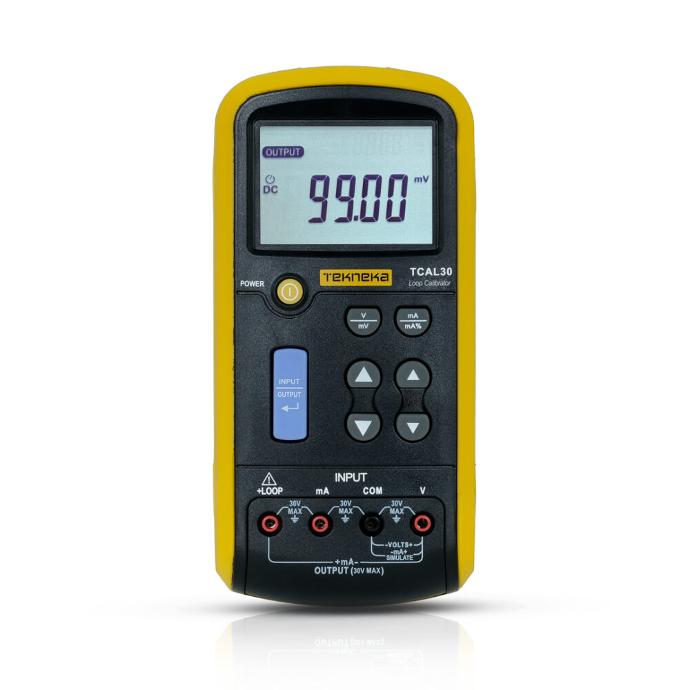

Tekneka TCAL30 Loop Calibrator

Tekneka TCAL30 Loop Calibrator: Key Features

1. High Accuracy and Stability: The Tekneka TCAL30 ensures precise and stable current loop calibration, making it ideal for critical industrial applications.

2. Wide Measurement Range: Capable of sourcing and measuring current from 0 to 24 mA, this loop calibrator covers a broad range of calibration needs.

3. Large, Backlit Display: The clear, backlit LCD screen provides easy readability in various lighting conditions, ensuring accurate data interpretation.

4. Loop Power Supply: The built-in 24V loop power supply allows for easy testing and calibration of loop-powered devices without the need for an external power source.

5. Simultaneous Display: View both source and measured values simultaneously on the dual display, enhancing efficiency and reducing errors during calibration.

6. HART Compatibility: The TCAL30 is compatible with HART communication, allowing for seamless integration with HART-enabled devices and systems.

7. Rugged and Portable Design: Designed for field use, this calibrator features a durable, shock-resistant casing and a compact, lightweight design for easy portability.

8. User-Friendly Interface: The intuitive interface with simple button navigation makes the TCAL30 easy to operate, even for users with minimal training.

9. Battery Life Indicator: Stay informed with the battery life indicator, ensuring your calibrator is always ready for use.

10. Comprehensive Accessories: The Tekneka TCAL30 comes with a complete set of accessories, including test leads, alligator clips, and a carrying case for added convenience.

These features highlight the Tekneka TCAL30 Loop Calibrator’s precision, versatility, and user-friendly design, making it an excellent choice for professionals in various industrial settings.

Tekneka TCAL30 Loop Calibrator: Technical Specifications

1. Measurement Range:

   • Current Source: 0 to 24 mA
   • Current Measure: 0 to 24 mA
   • Voltage Measure: 0 to 30 V DC

2. Accuracy:

   • Current Source: ±(0.02% + 2 counts)
   • Current Measure: ±(0.02% + 2 counts)
   • Voltage Measure: ±(0.02% + 2 counts)

3. Display:

   • Type: LCD
   • Backlight: Yes
   • Dual Display: Yes

4. Loop Power Supply:

   • Voltage: 24V DC
   • Maximum Load: 500Ω

5. Functions:

   • Source and Measure Current
   • Measure Voltage
   • Simultaneous Display of Source and Measure Values
   • HART Compatibility

6. Power Supply:

   • Battery Type: 9V (6F22)
   • Battery Life: Approximately 40 hours

7. Physical Characteristics:

   • Dimensions: 175 x 85 x 45 mm
   • Weight: 350 g
   • Casing: Shock-resistant, durable

8. Operating Environment:

   • Temperature: -10°C to 55°C (14°F to 131°F)
   • Humidity: <90% RH

9. Included Accessories:

   • Test Leads
   • Alligator Clips
   • Carrying Case
   • User Manual

10. Compliance and Safety:

    • Safety Rating: CAT II 300V
    • Overload Protection: Yes

These detailed technical specifications emphasize the Tekneka TCAL30 Loop Calibrator’s precision, reliability, and versatility, making it a top choice for professionals in various industrial settings.
