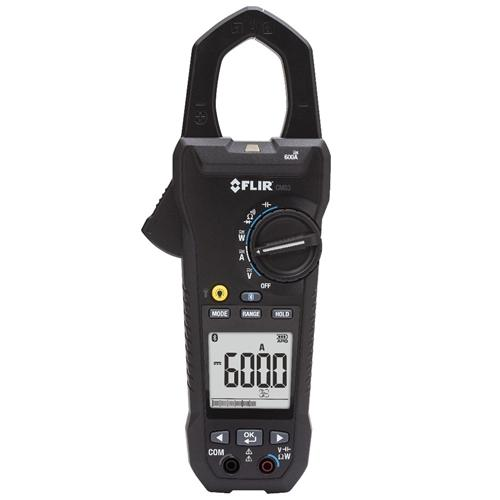

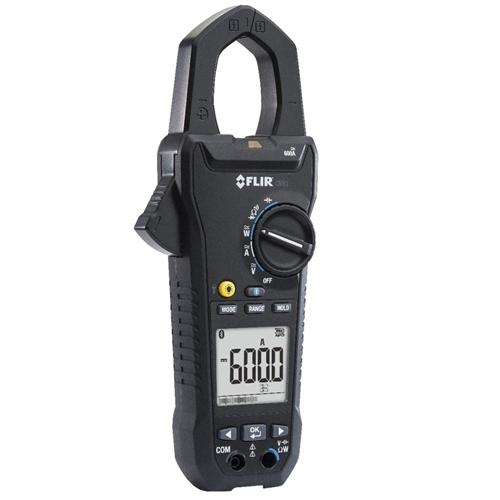

FLIR CM83: True RMS Power Clamp Meter (wireless)

https://www.dotearth.ae/web/image/product.template/2012/image_1920?unique=00750f8
(0 review)

1,469.00 AED 1469.0 AED 1,469.00 AED 1,499.00 AED

Not Available For Sale

  • Brand
  • Warranty

This combination does not exist.

Contact Us
Brand: Flir
Warranty: 1 Year

Share

​Key Features:

  • True RMS Power Measurement:
    • Accurately measures AC/DC current, voltage, and power, including distorted waveforms, for precise readings.
  • Wireless Connectivity:
    • Enables wireless data transfer to smartphones or tablets via Bluetooth for easy data logging, analysis, and sharing.
  • Integrated Logger:
    • Records measurement data for later analysis and documentation.
  • High Current Capacity:
    • Handles high current measurements, making it suitable for industrial and commercial applications.
  • Backlit Display:
    • Easy to read in dimly lit environments.
  • Data Hold Function:
    • Freezes readings for easy recording and analysis.
  • Auto Ranging:
    • Automatically selects the appropriate measurement range for optimal accuracy.
  • Compact and Durable Design:
    • Built to withstand tough jobsite conditions.
  • Ergonomic Design:
    • Comfortable to use for extended periods.


​Key Technical Specifications:

Current Measurement Range

  • AC Current: 0.1A to 600A True RMS.
  • DC Current: 0.1A to 600A.
  • Accurate for diverse current measurement applications.

Voltage Measurement Range

  • AC Voltage: 0.1V to 1000V True RMS.
  • DC Voltage: 0.1V to 1000V.
  • Ideal for detailed electrical diagnostics.

Power Measurement

  • Active Power (W): 10W to 600kW.
  • Reactive Power (VAR): 10VAR to 600kVAR.
  • Apparent Power (VA): 10VA to 600kVA.
  • Comprehensive analysis of power systems.

Harmonics Analysis

  • Measures Total Harmonic Distortion (THD).
  • Provides detailed insights into waveform distortions.

Frequency Measurement

  • Range: 20Hz to 9.999kHz.
  • Accurate monitoring of system frequency.

Resistance and Continuity Testing

  • Resistance Range: Up to 60kΩ.
  • Ensures precise troubleshooting.

Capacitance Measurement

  • Range: Up to 3.999mF.
  • Useful for component and circuit analysis.

Wireless Connectivity

  • Equipped with Bluetooth METERLiNK® for real-time data transfer to FLIR thermal imaging cameras and mobile devices.

True RMS Technology

  • Ensures accurate readings for both sinusoidal and non-sinusoidal waveforms.

Jaw Opening Capacity

  • Maximum Diameter: 37mm
  • Compatible with thick conductors and bus bars.

Safety Ratings

  • CAT IV 600V, CAT III 1000V: Maximum safety for high-voltage environments.

Display

  • Large, backlit dual display for clear visibility in all lighting conditions.
  • Bar graph display for real-time trend analysis.

Inrush Current Measurement

  • Detects startup currents for motors and equipment.

Data Logging and Memory

  • Stores measurement data for on-site analysis.
  • Exportable data for enhanced reporting.

Durable and Rugged Design

  • Built for demanding environments with impact-resistant housing.
