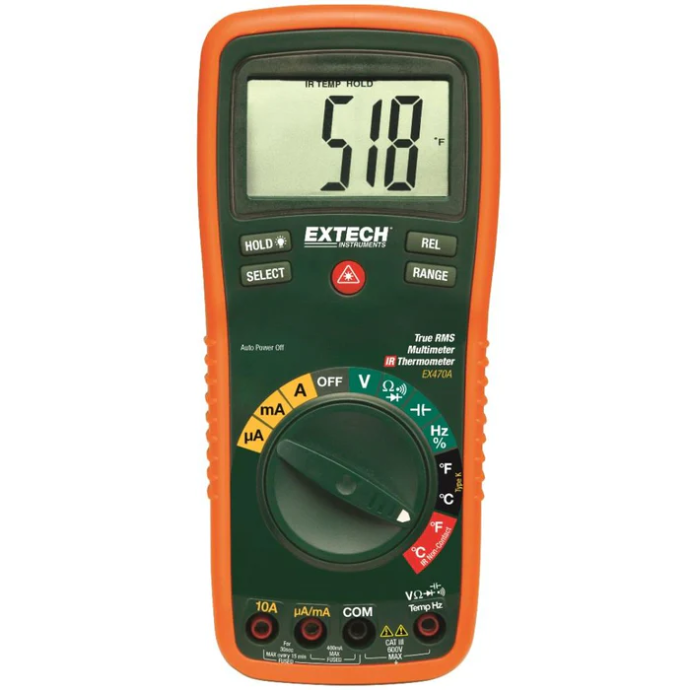

True RMS AC Voltage/Current: Ensures accurate readings even with distorted waveforms, crucial for modern electronics.
12 Essential Functions: Covers a wide range of electrical measurements including AC/DC Voltage, AC/DC Current, Resistance, Capacitance, Diode Test, Continuity Test, Frequency, Temperature (K/°C/°F).
Built-in Infrared Thermometer: Contactless temperature measurement for safer and faster readings on hot surfaces.
Data Hold & Auto Power Off: Freezes readings for easy viewing and conserves battery life.
Backlit LCD Display: Easy to read in low-light conditions.
Rugged & Durable: Designed for demanding professional use.
Complete Kit: Includes test leads, temperature probe, batteries, and user manual.
Key Technical Specifications:
True RMS AC Voltage:
Range: 0.1mV to 600V
Accuracy: ±0.5% + 3 dgt
Bandwidth: 40kHz to 60Hz
True RMS AC Current:
Range: 0.1µA to 10A
Accuracy: ±1.0% + 5 dgt
Bandwidth: 40kHz to 60Hz
DC Voltage:
Range: 0.1mV to 600V
Accuracy: ±0.3% + 3 dgt
DC Current:
Range: 0.1µA to 10A
Accuracy: ±0.5% + 5 dgt
Resistance:
Range: 0.1Ω to 40MΩ
Accuracy: ±0.5% + 3 dgt
Capacitance:
Range: 0.01nF to 100µF
Accuracy: ±2.5% + 5 dgt
Frequency:
Range: 1Hz to 100kHz
Accuracy: ±0.2% + 5 dgt
Diode Test:
Voltage: 2.0V ±0.2V
Continuity Test:
Resistance: 30Ω ±5Ω
Temperature (Electrical):
Range: -20°C to 750°C (-4°F to 1382°F)
Accuracy: ±1.0% + 3 dgt
Infrared Thermometer:
Temperature Range: -20°C to 270°C
Accuracy: ±1.5% or ±1.5°C
Distance to Spot Ratio (D:S): 8:1
Emissivity: 0.95 fixed
Display:
Type: Backlit LCD
Count: 4000
Power:
Batteries: 9V battery
Battery Life: Approximately 200 hours
Safety:
Category: CAT IV 600V, CAT III 1000V
For B2B Inquiries :
Please send your E-Mail to info@dotearth.ae, and one of our sales associate will contact you.
Tel : 02 665 1126
