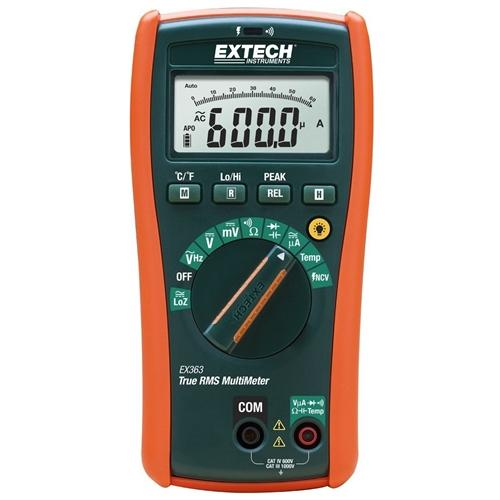

Extech EX363: 11 Function True RMS Multimeter

https://www.dotearth.ae/web/image/product.template/1918/image_1920?unique=b1f33c7
(0 review)

653.00 AED 653.0 AED 653.00 AED 699.00 AED

Not Available For Sale

  • Brand
  • Warranty

This combination does not exist.

Contact Us
Brand: Extech Instruments
Warranty: 1 Year

Share

Key Features:

  • True RMS Measurements: Ensures accurate readings of AC voltage and current, even for distorted waveforms commonly found in HVAC systems.
  • Low Impedance Mode (LoZ): Eliminates false readings caused by "ghost voltages" in high-impedance circuits, providing accurate measurements in challenging HVAC applications.
  • Microamp (µA) Function: Enables precise measurements of low currents, crucial for HVAC flame rod and other low-current applications.
  • Large, Backlit LCD Display: Ensures easy readability in various lighting conditions, improving user experience.
  • Data Hold Function: Freezes readings on the display for easy recording and analysis.
  • Auto Power Off: Conserves battery life by automatically shutting down the meter after a period of inactivity.
  • Rugged and Durable: Designed to withstand drops and impacts, making it suitable for demanding field use in HVAC environments.
  • Comprehensive Measurement Capabilities: Measures AC/DC voltage, AC/DC current, resistance, capacitance, frequency, and temperature.


Key Technical Specifications:

  • DC Voltage:
    • Range: 1000V AC/DC
  • AC Voltage (True RMS):
    • Range: 1000V AC/DC
  • DC Current:
    • Resolution: 0.1µA
    • Range: 60.00µA to 10.00A
    • Accuracy: ±1.0% ±3 digits
  • AC Current (True RMS):
    • Resolution: 0.1mA
    • Range: 600.0µA to 10.00A
    • Accuracy: ±1.5% ±5 digits
  • Resistance:
    • Resolution: 0.1Ω
    • Range: 60.00Ω to 40.00MΩ
    • Accuracy: ±1.0% ±3 digits
  • Capacitance:
    • Resolution: 1nF
    • Range: 20.00nF to 20.00µF
    • Accuracy: ±3.5% ±5 digits
  • Frequency:
    • Resolution: 0.01Hz
    • Range: 0.001Hz to 40MHz
    • Accuracy: ±0.5% ±5 digits
  • Temperature:
    • Range: -40 to 394°C)
  • Diode Test:
    • Voltage: Approx. 2.0V
  • Continuity Test:
    • Audible and visual indication
  • Safety:
    • CAT III 600V, CAT IV 300V
    • IEC 61010-1
