Additel 273Ex Handheld Pressure Calibrator

DOT EARTH · BUSINESS SUPPLY

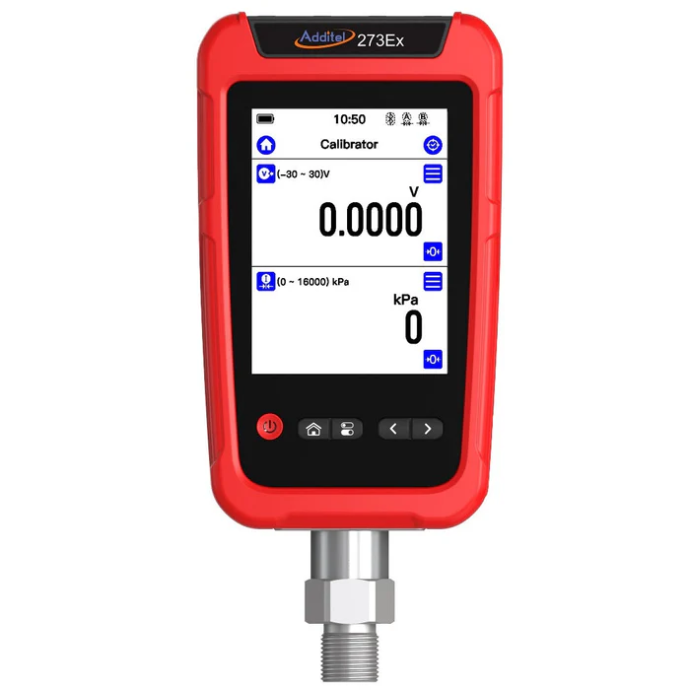

Additel 273Ex Handheld Pressure Calibrator

https://www.dotearth.ae/web/image/product.template/2135/image_1920?unique=b298c1d
(0 review)

19,425.00 AED 19425.0 AED 19,425.00 AED 20,000.00 AED

Not Available For Sale

  • Brand
  • Warranty

This combination does not exist.

Contact Us
Brand: Additel
Warranty: 1 Year

Share

Key Features:

All-in-One Intrinsically Safe Calibrator

  • Combines pressure measurement, loop calibration, and HART communication in a single compact device.

Wide Pressure Measurement Range

  • Supports gauge, differential, and absolute pressure up to 60,000 psi (4,200 bar) depending on sensor module used.

ATEX, IECEx, CSA Certified

  • Fully intrinsically safe for use in hazardous and explosive environments (Zone 0).

Modular Pressure Sensor Design

  • Compatible with ADT160Ex series intelligent pressure modules, offering flexibility and easy swap-out.

High Accuracy & Stability

  • Delivers up to 0.02% FS accuracy, suitable for high-precision field calibration and testing.

HART Communicator Built-In

  • Functions as a universal HART communicator to configure, calibrate, and diagnose smart transmitters.

Multifunction Process Calibrator

  • Measures and sources:

    • Voltage (mV/V)

    • Current (mA)

    • Resistance (RTD/thermocouple support)

    • Frequency

    • Switches

Full Loop Calibration Capability

  • Simulates sensors and captures outputs to validate full process loops.

Color Touchscreen Display

  • Easy-to-read 3.5-inch color touchscreen with intuitive navigation and real-time data display.

Advanced Data Logging

  • Stores calibration tasks, logs, and test data for later retrieval and report generation.

Robust Field-Ready Design

  • Rugged, IP67-rated housing for harsh industrial environments.

Rechargeable Li-ion Battery

  • Up to 35 hours of continuous use on a single charge.

USB and Bluetooth Communication

  • Allows seamless data transfer, remote control, and integration with Additel software.


​Key Technical Specifications:

Model: Additel 273Ex

🔹 Explosion Protection Certifications:

  • ATEX, IECEx, CSA certified for Zone 0 hazardous environments

  • Intrinsically safe design: Ex ia IIC T4 Ga

🔹 Pressure Measurement:

  • Compatible with ADT160Ex smart pressure modules

  • Range: Vacuum to 60,000 psi (4,200 bar)

  • Accuracy: Up to ±0.02% FS (sensor dependent)

🔹 Display:

  • 4.4-inch color display capacitive screen, transflective, with LED backlight

  • Multi-window display for simultaneous readings

🔹 Electrical Measurement & Source Capabilities:

  • Current (mA): 0 to 24 mA, sourcing & measuring

  • Port Protection Voltage:  30 V max

  • Frequency:  Units: Hz, kHz, MHz, CPM, CPH, s, ms, us

  • Switch On-Off Measurement:  Inspection voltage: (3 ~ 30)V Response speed: < 10 ms, supports wet and dry switch

  • Loop Power Supply: 22 V ± 10%, max output impedance: 320 Ω, max load current: 25 mA

🔹 HART Communication:

  • Built-in universal HART communicator

  • Supports all HART commands for transmitter configuration

🔹 Data Logging & Storage:

  • Internal memory for task management and data logging

  • Stores calibration results and field test data

🔹 Battery:

  • Rechargeable Li-ion battery, up to 6 hours operation

  • Charging via USB-C

🔹 Connectivity:

  • USB, Bluetooth (for wireless data transfer and remote operation)

🔹 Environmental:

  • Operating Temperature: (-20 ~ 50)°C

  • Storage Temperature:  (-30 ~ 70)°C

  • Humidity: 0% to 95% RH, non-condensing

  • Altitude: 3000 meters

🔹 Ingress Protection:

  • Rated IP67 for dust and water resistance

🔹 Dimensions & Weight:

  • Size: 6.97" x 4.13" x 2.04" (177 x 105 x 52 mm) which doesn't include bottom ADT158Ex

  • Weight: 1.65 lbs (0.75 kg)
