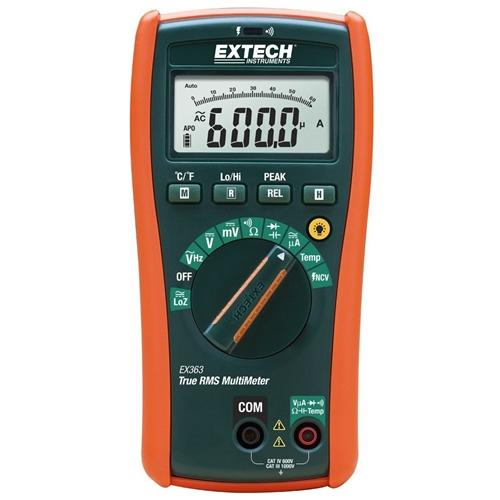

Extech EX363: 11 Function True RMS Multimeter

هذه التركيبة غير موجودة.

العلامة التجارية: Extech Instruments

Warranty: 1 Year

Key Features:

True RMS Measurements: Ensures accurate readings of AC voltage and current, even for distorted waveforms commonly found in HVAC systems.
Low Impedance Mode (LoZ): Eliminates false readings caused by "ghost voltages" in high-impedance circuits, providing accurate measurements in challenging HVAC applications.
Microamp (µA) Function: Enables precise measurements of low currents, crucial for HVAC flame rod and other low-current applications.
Large, Backlit LCD Display: Ensures easy readability in various lighting conditions, improving user experience.
Data Hold Function: Freezes readings on the display for easy recording and analysis.
Auto Power Off: Conserves battery life by automatically shutting down the meter after a period of inactivity.
Rugged and Durable: Designed to withstand drops and impacts, making it suitable for demanding field use in HVAC environments.
Comprehensive Measurement Capabilities: Measures AC/DC voltage, AC/DC current, resistance, capacitance, frequency, and temperature.

Key Technical Specifications:

DC Voltage:
- Range: 1000V AC/DC
AC Voltage (True RMS):
- Range: 1000V AC/DC
DC Current:
- Resolution: 0.1µA
- Range: 60.00µA to 10.00A
- Accuracy: ±1.0% ±3 digits
AC Current (True RMS):
- Resolution: 0.1mA
- Range: 600.0µA to 10.00A
- Accuracy: ±1.5% ±5 digits
Resistance:

Capacitance:
- Resolution: 1nF
- Range: 20.00nF to 20.00µF
- Accuracy: ±3.5% ±5 digits
Frequency:
- Resolution: 0.01Hz
- Range: 0.001Hz to 40MHz
- Accuracy: ±0.5% ±5 digits
Temperature:
- Range: -40 to 394°C)
Diode Test:
- Voltage: Approx. 2.0V
Continuity Test:
- Audible and visual indication
Safety:
- CAT III 600V, CAT IV 300V
- IEC 61010-1
