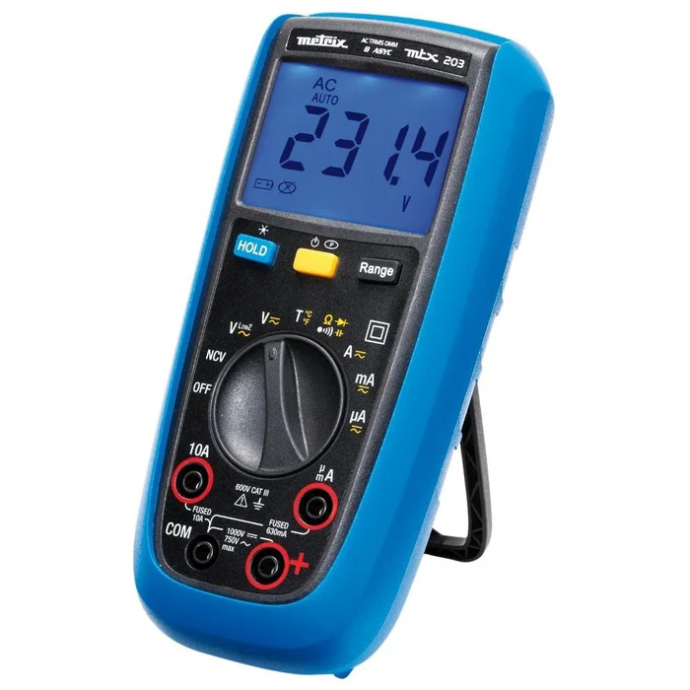

Chauvin Arnoux MTX 203-Z Digital Multimeter

https://www.dotearth.ae/web/image/product.template/1941/image_1920?unique=96f217c
(مراجعة 0 )

449.00 AED 449.0 AED 449.00 AED 469.00 AED

Not Available For Sale

  • العلامة التجارية
  • Warranty

هذه التركيبة غير موجودة.

تواصل معنا
العلامة التجارية: Chauvin Arnoux
Warranty: 1 Year

مشاركة

Key Features:

  • High-Precision Measurements

    • Delivers accurate readings for AC/DC voltage (up to 600V), current (up to 10A), resistance (up to 60MΩ), and more.
    • True RMS technology ensures precise results even with complex waveforms.

  • User-Friendly Display

    • Large, backlit LCD screen with a 6,000-count resolution for easy data visualization in various lighting conditions.

  • Advanced Measurement Capabilities

    • Measures frequency, capacitance, and temperature with optional thermocouple probes.
    • Features continuity testing and diode check for enhanced functionality.

  • Ergonomic and Durable Design

    • Compact, lightweight, and robust build with IP54-rated protection against dust and water.
    • Designed for professional use in demanding environments.

  • Safety and Compliance

    • Rated CAT III 600V according to IEC 61010 standards for maximum user safety during industrial applications.

  • Connectivity Options

    • Built-in Bluetooth and USB interfaces for seamless data transfer.
    • Compatible with Chauvin Arnoux software for data logging and detailed analysis.

  • Data Logging and Storage

    • Internal memory supports up to 6,500 recorded measurements, ensuring uninterrupted work sessions.

  • Power Efficiency

    • Operates on standard AA batteries with an automatic shut-off feature to prolong battery life.

  • Versatile Functionality

    • Auto-ranging mode simplifies measurements for faster and more efficient use.
    • Offers both manual and automatic modes to suit diverse testing needs.

  • Comprehensive Accessories

    • Comes with test leads, a protective carrying case, and an optional thermocouple probe for extended usability.




​Key Technical Specifications.

Display:

  • High-contrast backlit LCD screen.
  • 6,000-count resolution for precise measurements.

Measurement Functions:

  • AC/DC Voltage: Up to 600 V.
  • AC/DC Current: Up to 10 A.
  • Resistance: Up to 60 MΩ.
  • Capacitance: From 1 pF to 60 mF.
  • Frequency: From 1 Hz to 100 kHz.
  • Temperature Measurement: -55°C to +1,200°C (-67°F to +2,192°F) with optional thermocouple.

Accuracy:

  • Voltage accuracy: ±0.5% on DC.
  • Current accuracy: ±1.5% on DC.

Safety Compliance:

  • IEC 61010, CAT III 600V for industrial environments.

Connectivity:

  • Bluetooth and USB interface for data logging and transfer.
  • Compatible with Chauvin Arnoux's software for analysis.

Data Logging:

  • Built-in memory for up to 6,500 measurements.

Ergonomic Design:

  • Compact, lightweight, and robust with an IP54 rating for dust and water resistance.

Power Supply:

  • Operates on standard AA batteries.
  • Automatic power-off feature for battery conservation.

Additional Features:

  • True RMS measurements for accurate readings in complex waveforms.
  • Auto-ranging function for ease of use.
  • Continuity buzzer and diode test.

Accessories Included:

  • Test leads, carrying case, user manual, and optional thermocouple probe.
