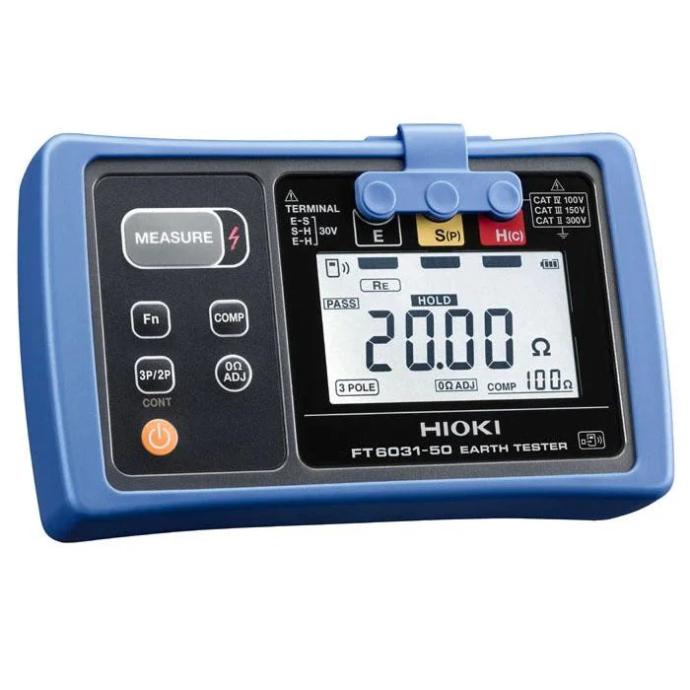

Hioki FT6031-50 Earth Resistance Tester

https://www.dotearth.ae/web/image/product.template/2154/image_1920?unique=5c24594
(0 review)

1,300.00 AED 1300.0 AED 1,300.00 AED VAT Excluded 1,499.00 AED

1,300.00 AED VAT Excluded 1,499.00 AED

Not Available For Sale

    This combination does not exist.

    Contact Us
    Brand: Hioki
    Warranty: 1 Year


    Name: Hioki FT6031-50 Earth Resistance Tester

    Key Features:

    Highly Accurate Earth Resistance Testing
    Delivers precise 3-pole and 2-pole ground resistance measurements, ideal for electrical installations and inspections.

    Direct Digital Display with Backlight
    Clear LCD screen with backlight for enhanced visibility in dimly lit or outdoor environments.

    IP67 Dustproof and Waterproof
    Fully protected against dust and water, perfect for rugged field use in all weather conditions.

    Long Battery Life with Auto Power Off
    Designed for efficient power usage with automatic shut-off, providing longer operation time in the field.

    Wide Measurement Range
    Measures earth resistance from 0 to 2000 Ω across multiple ranges (20 Ω, 200 Ω, 2000 Ω), suitable for a variety of grounding applications.

    Simplified Setup with Color-Coded Cables
    Easy-to-use, with color-coded leads for quick and error-free connection.

    Robust and Compact Design
    Lightweight and portable with a durable case—ideal for on-site testing and long-term reliability.

    Safe and Compliant
    Conforms to IEC 61010-1 safety standards and includes overvoltage protection for user safety.

    Comes with Complete Accessories
    Supplied with earth test leads, auxiliary earth spikes, and carrying case for immediate deployment.


    ​Key Technical Specifications:

    Measurement Method: 3-electrode or 2-electrode earth resistance measurement

    Measuring Ranges:

    • 20 Ω (resolution: 0.01 Ω)

    • 200 Ω (resolution: 0.1 Ω)

    • 2000 Ω (resolution: 1 Ω)

    Test Current: Maximum approx. 15 mA RMS

    Display: LCD with backlight for outdoor and low-light use

    Operating Temperature: -25°C to 65°C (-13°F to 149°F)

    Storage Temperature & Humidity: -25°C to 65°C : 80% rh or less

    Protection Rating: IP67 (dustproof and waterproof)

    Power Supply: Alkaline batteries (LR6) × 4

    Weight: Approx. 570g (including batteries)

    Accessories Included:

    • Earth resistance test leads (red, yellow, green)

    • Auxiliary earthing rod L9840 (2 piece set) x 1

    • Carrying case x 1

    • Instruction manual x 1

    • LR6 Alkaline Battery x 4
